Ensure Accessibility of AWS Network EKS Load Balancer Service

When using AWS EKS Network Load Balancer Service, if the replicas of a workload are few, you may encounter accessibility issues from time to time.

You can try the following experiment using this YAML file (ensure that the AWS Load Balancer Controller is installed):


apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
          - containerPort: 80
            protocol: TCP
            name: http
---
apiVersion: v1
kind: Service
metadata:
  name: nginx
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: "external"
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: "ip"
    service.beta.kubernetes.io/aws-load-balancer-scheme: "internet-facing"
spec:
  selector:
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
      name: http
  type: LoadBalancer

After applying the YAML file, you will get the corresponding public URL:


$ kubectl get svc
NAME                  TYPE           CLUSTER-IP     EXTERNAL-IP                                                                 PORT(S)        AGE
nginx                 LoadBalancer   172.20.75.38   k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com   80:32358/TCP   2m4s

When you try to check the IP address:


$ nslookup k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com
Server:         192.168.31.1
Address:        192.168.31.1#53

Non-authoritative answer:
Name:   k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com
Address: 3.18.27.194
Name:   k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com
Address: 3.134.136.77
Name:   k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com
Address: 3.128.225.234

When testing accessibility with all the IP addresses:


$ curl -H "Host: k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com" 3.134.136.77
timeout ^C
$ curl -H "Host: k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com" 3.128.225.234
timeout ^C
$ curl -H "Host: k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com" 3.18.27.194
...Thank you for using nginx.</em></p>...

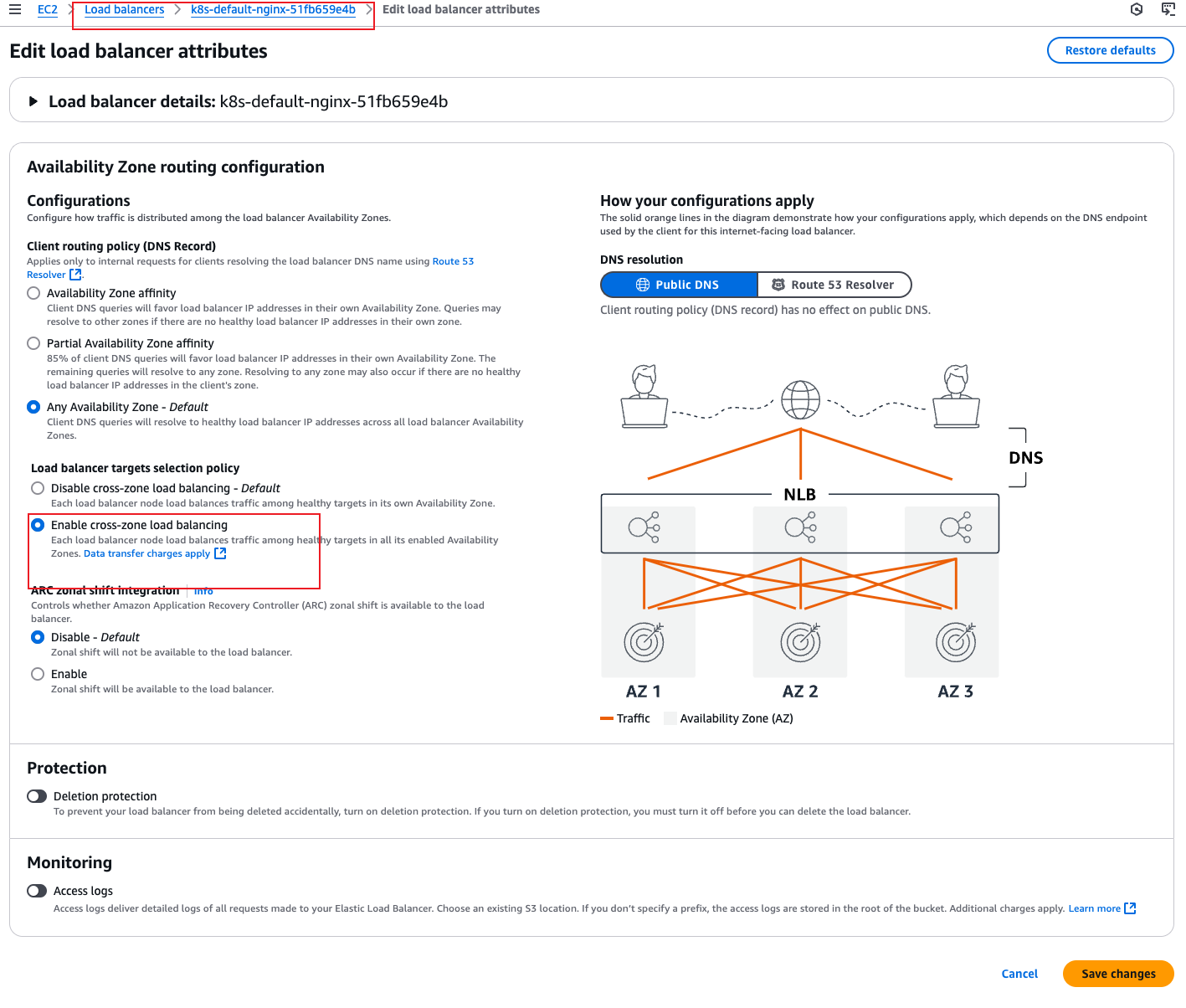

In this case, only one IP works. To ensure the availability of the service, you need to enable the Cross-Zone Load Balancing feature:

cross-zone

Now, if you curl any of the IPs, they will all work perfectly:


$ curl -H "Host: k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com" 3.134.136.77
...Thank you for using nginx.</em></p>...

$ curl -H "Host: k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com" 3.128.225.234
...Thank you for using nginx.</em></p>...

$ curl -H "Host: k8s-default-nginx-51fb659e4b-8a5f5dd1910f981f.elb.us-east-2.amazonaws.com" 3.18.27.194
...Thank you for using nginx.</em></p>...
